In various industries, accurate temperature measurement is crucial for ensuring quality, safety, and efficiency. One of the most reliable and precise instruments for this purpose is the platinum resistance temperature sensor, commonly known as an RTD (Resistance Temperature Detector). At Focusens, we specialize in high-quality platinum resistance temperature sensors designed to meet diverse temperature sensing needs.

What is a Platinum Resistance Temperature Sensor?

A platinum resistance temperature sensor is a type of RTD that measures temperature by correlating the resistance of platinum with temperature. As the temperature increases, the resistance of the platinum element increases in a well-defined, repeatable, and nearly linear manner. This property makes platinum resistance temperature sensors highly accurate and stable over a wide temperature range.

How Do Platinum RTDs Work?

The operation of a platinum resistance temperature sensor is based on the principle that the electrical resistance of platinum increases with temperature. By measuring the resistance of the platinum element, the temperature can be determined using standardized equations, such as the Callendar-Van Dusen equation. This equation provides a precise relationship between resistance and temperature, allowing for accurate temperature measurements.

Types of Platinum RTDs

Platinum resistance temperature sensors come in various configurations to suit different applications:

• PT100: This is the most common type, with a resistance of 100 ohms at 0°C. PT100 platinum resistance temperature sensors are widely used in industrial and scientific applications due to their accuracy and stability.

• PT1000: These sensors have a resistance of 1000 ohms at 0°C. The higher resistance allows for better signal integrity over long distances, making them ideal for applications where the sensor is far from the measurement equipment.

• Thin-Film RTDs: Constructed by depositing a thin layer of platinum onto a ceramic substrate, these platinum RTDs are cost-effective and suitable for applications where space is limited.

• Wire-Wound RTDs: These platinum resistance temperature sensors consist of a fine platinum wire wound around a ceramic or glass core. They offer high accuracy and are commonly used in laboratory and industrial settings.

Applications of Platinum RTDs

Platinum RTDs are versatile and used in various industries:

• Industrial Automation: Monitoring and controlling temperatures in manufacturing processes to ensure product quality and safety.

• HVAC Systems: Regulating indoor climates in commercial and residential buildings for comfort and energy efficiency.

• Medical Devices: Providing precise temperature measurements in equipment like incubators and sterilizers.

• Automotive Industry: Monitoring engine and battery temperatures to optimize performance and prevent overheating.

• Food and Beverage: Ensuring proper cooking and storage temperatures to maintain food safety standards.

Advantages of Platinum RTDs

Platinum resistance temperature sensors offer several benefits:

• High Accuracy: They provide precise and reliable temperature measurements, essential for critical applications.

• Wide Temperature Range: Platinum RTDs can operate over a broad temperature range, typically from -200°C to 850°C, making them suitable for various environments.

• Stability and Repeatability: They maintain consistent performance over time, reducing the need for frequent recalibration.

• Resistance to Corrosion: Platinum is highly resistant to chemical reactions, ensuring durability in harsh environments.

Choosing the Right Platinum RTD Sensor

Selecting the appropriate platinum resistance temperature sensor depends on factors such as:

• Temperature Range: Ensure the sensor's operating range aligns with your application's requirements.

• Accuracy Requirements: Determine the level of precision needed for your measurements.

• Environmental Conditions: Consider factors like exposure to chemicals, pressure, and vibration.

• Response Time: Assess how quickly the sensor needs to respond to temperature changes.

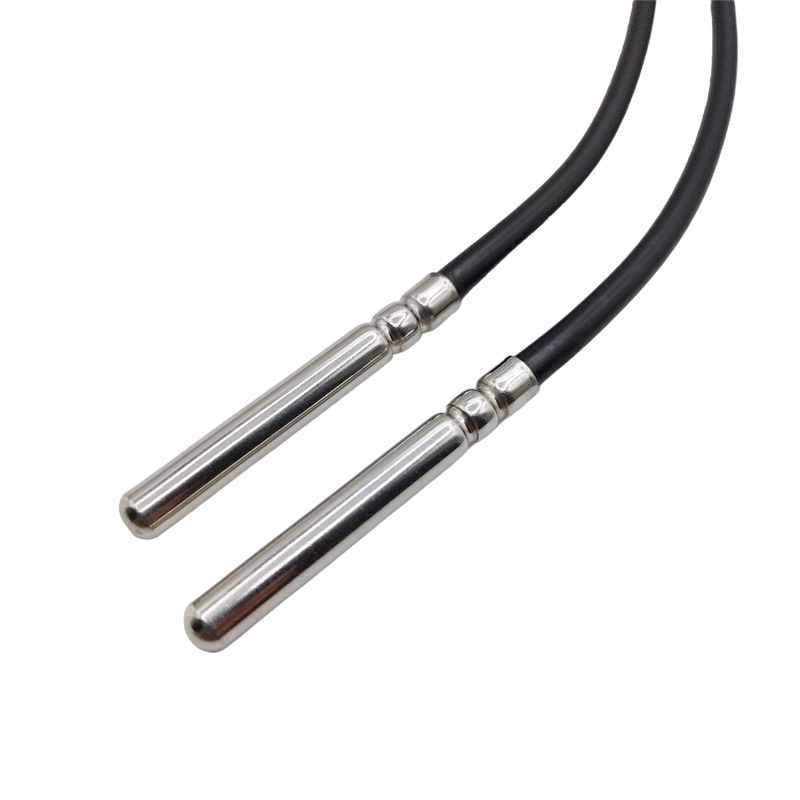

At Focusens, we offer a range of platinum resistance temperature sensors tailored to meet diverse application needs. Our sensors are designed for high accuracy, durability, and reliability, ensuring optimal performance in various environments.

Conclusion

Platinum resistance temperature sensors are essential components in modern temperature measurement, offering high accuracy, stability, and a wide operating range. Whether you're in industrial automation, HVAC, medical devices, automotive, or food and beverage industries, selecting the right platinum RTD sensor is crucial for optimal performance. Partnering with a reliable supplier like Focusens ensures access to quality sensors that meet your specific requirements.
